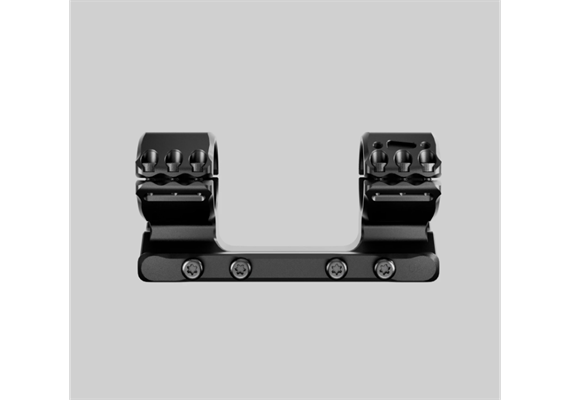

DAVIKA Blockmontage Ø34mm, BH=30mm 20 MOA
Descrizione di DAVIKA Blockmontage Ø34mm, BH=30mm 20 MOA
The MSM-01 is a fixed scope mount specifically engineered for bolt-action rifles. This scope mount is designed to withstand the heavy recoil of magnum calibers while ensuring uncompromising zero retention and scope stability.
Bolt action rifles up to .338 LM
Benefits:
Optimized Mounting Geometry: Achieves perfect, repeatable positioning on the Picatinny rail with zero shift under fire.
Precision Center Recess: The bottom mounting surface features a precision-milled longitudinal center recess. This ensures contact with the Picatinny rail occurs along two narrow parallel lines, minimizing the impact of rail imperfections and ensuring consistent re-zeroing after detachment.
Milled Recoil Lug: The recoil lug features a center-cut design that limits the contact area within the Picatinny slot. By distributing clamping force over two narrow bearing surfaces, it neutralizes rail tolerance issues for ultra-stable positioning.
Features:
Rigid Monolithic Design: Ensures maximum stability under the extreme kinetic energy of powerful calibers, including .308 Win, .300 NM, .338 LM.
Internal Ring Grooves: The inner surface of the rings features precision-milled grooves that create localized high-grip zones when tightened. This design eliminates the risk of micro-slippage during heavy recoil.
Integrated SMAI Interface: Built-in SMAI-A ports allow for extensive customization, enabling shooters to attach various accessories to enhance their operational experience.
Triangular Geometry: The SMAI interface is based on the triangle—the strongest and most stable geometric form in engineering—ensuring a secure hold even for heavy accessories.
Drainage Channels: All structural openings are designed with drainage to ensure proper circulation of chemical solutions during the anodizing process. This guarantees a uniform, high-quality coating in all internal areas and threads.
Premium Material: Manufactured from 7075-T6 aircraft-grade aluminum, the strongest aluminum alloy in the world.
Superior Finish: Hard Anodized finish for maximum durability.
High-End Fasteners: Equipped with high-quality stainless-steel screws featuring a durable dark anti-reflective coating.
