DAVIKA FTR-01 EOTECH MAGNIFIER MOUNT

Beschreibung zu DAVIKA FTR-01 EOTECH MAGNIFIER MOUNT

Compatible with: EOTECH G33, G43, G45

FTR-01 RDM EOTech Magnifier Mount

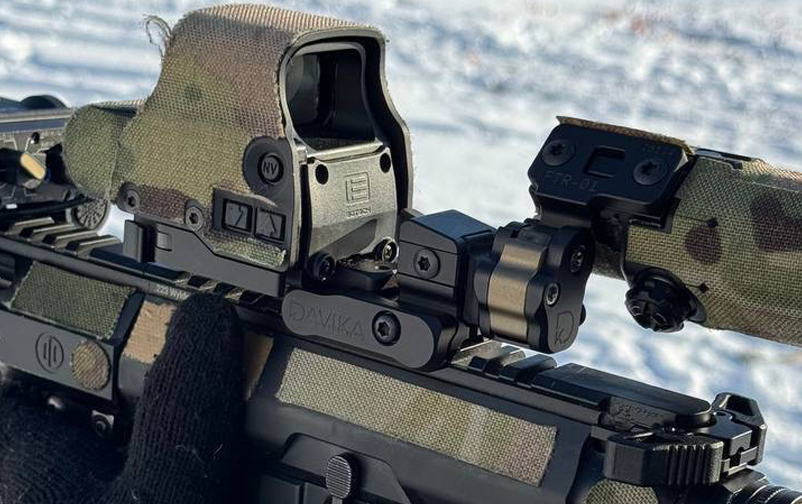

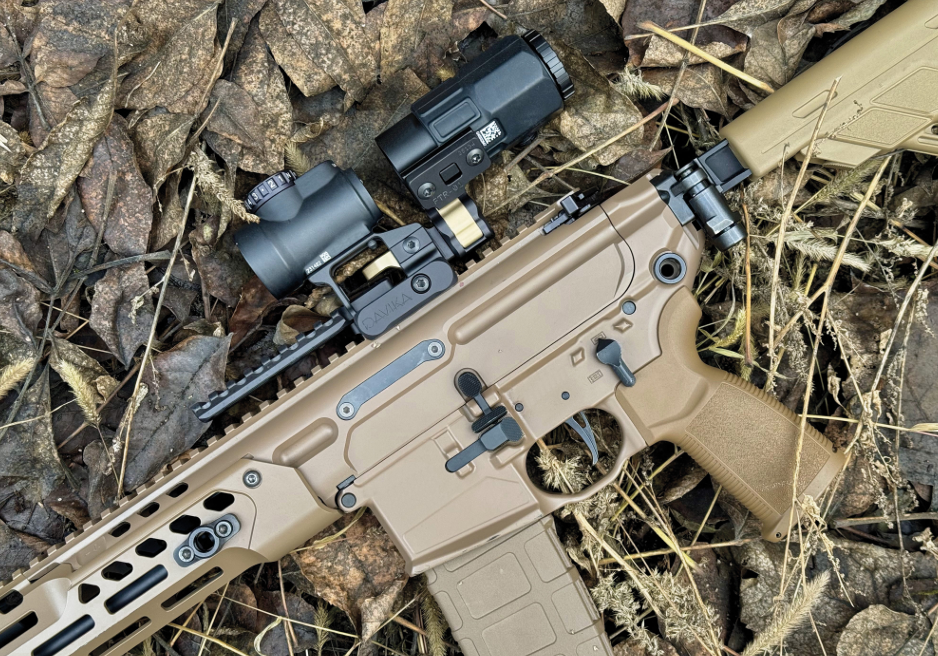

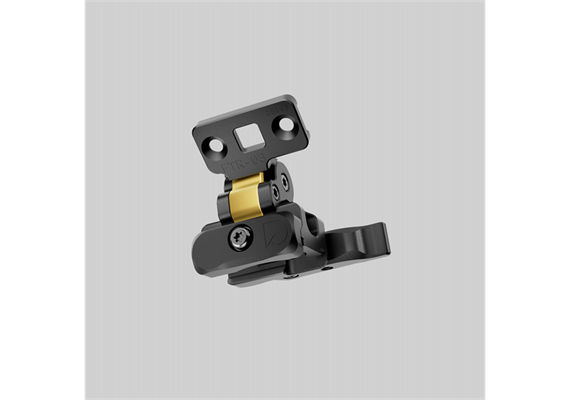

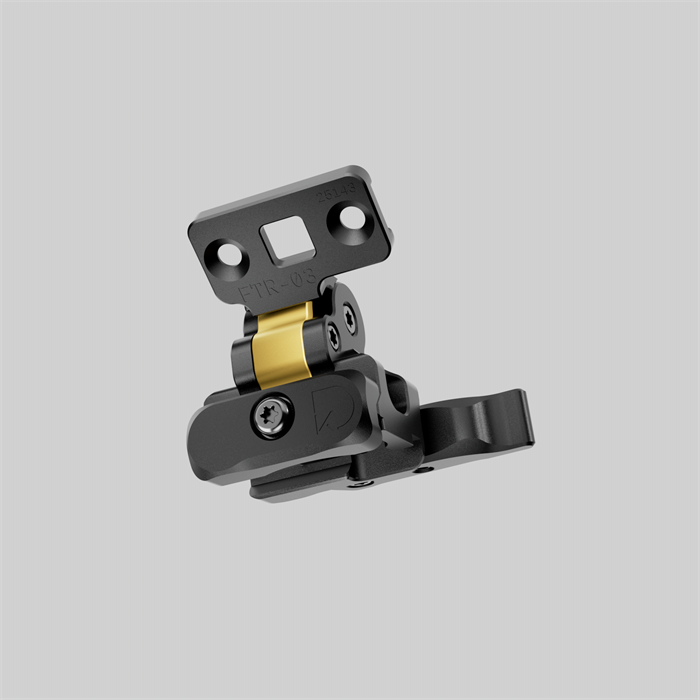

FTR-01 RDM is a quick-detach flip-to-right magnifier mount designed for EOTech G33, G43, and G45, allowing direct installation onto DAVIKA RDM red dot mounts. It precisely aligns the magnifier with the red dot optic at a 2.25” / 57 mm optical axis height, forming a rigid and unified aiming system.

Height:/2.25 in/57mm

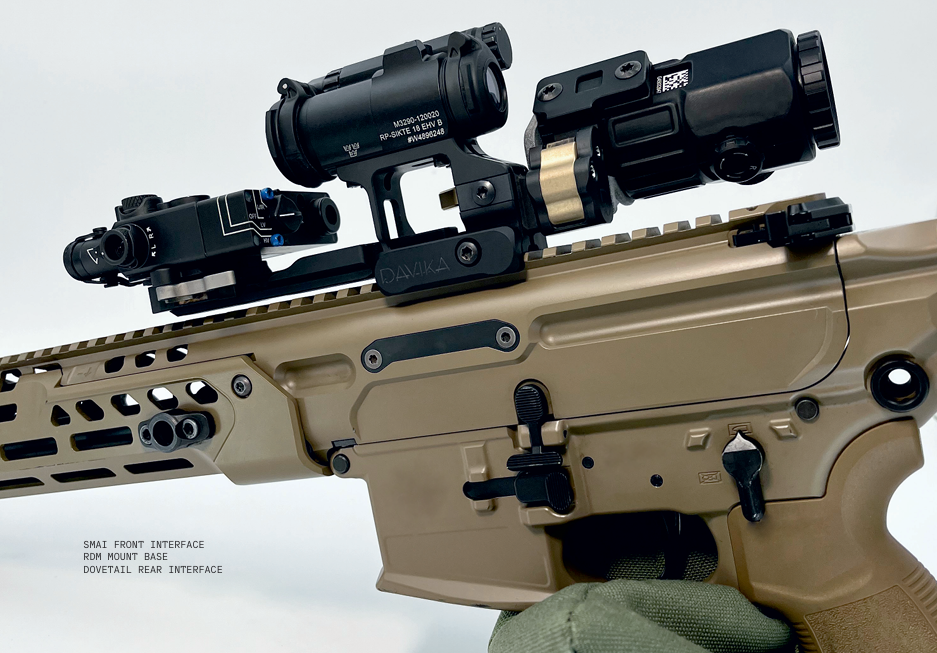

The FTR-01 RDM magnifier mount was developed as part of the DAVIKA RDM ecosystem, enabling seamless integration of EOTech magnifiers with RDM-series red dot mounts.

Unlike conventional Picatinny-based solutions, FTR-01 RDM mounts directly to the RDM dovetail interface, eliminating unnecessary height offsets and alignment inconsistencies. This design ensures the magnifier and red dot operate on a single optical axis, providing a stable and predictable sight picture.

The flip-to-right mechanism is engineered for controlled, repeatable movement, offering clear tactile feedback and reliable locking in both operating and stowed positions. FTR-01 RDM is designed for dynamic shooting environments where speed, consistency, and mechanical confidence matter.

Dedicated magnifier mount for EOTech G33, G43, and G45
Direct installation onto DAVIKA RDM mounts via dovetail interface
2.25” / 57 mm optical axis height aligned with RDM red dot mounts
Flip-to-right mechanism with controlled motion and tactile feedback
Short movement trajectory to prevent accidental deployment
Different resistance levels when moving to and from operating position
Optional compatibility with magnifier rear lens protection accessory
Quick-detach mechanism with manual operation
Locking button prevents accidental release during dynamic shooting
Precision CNC-machined from 7075-T6 aluminum
Type III hard anodized for maximum durability and corrosion resistance
